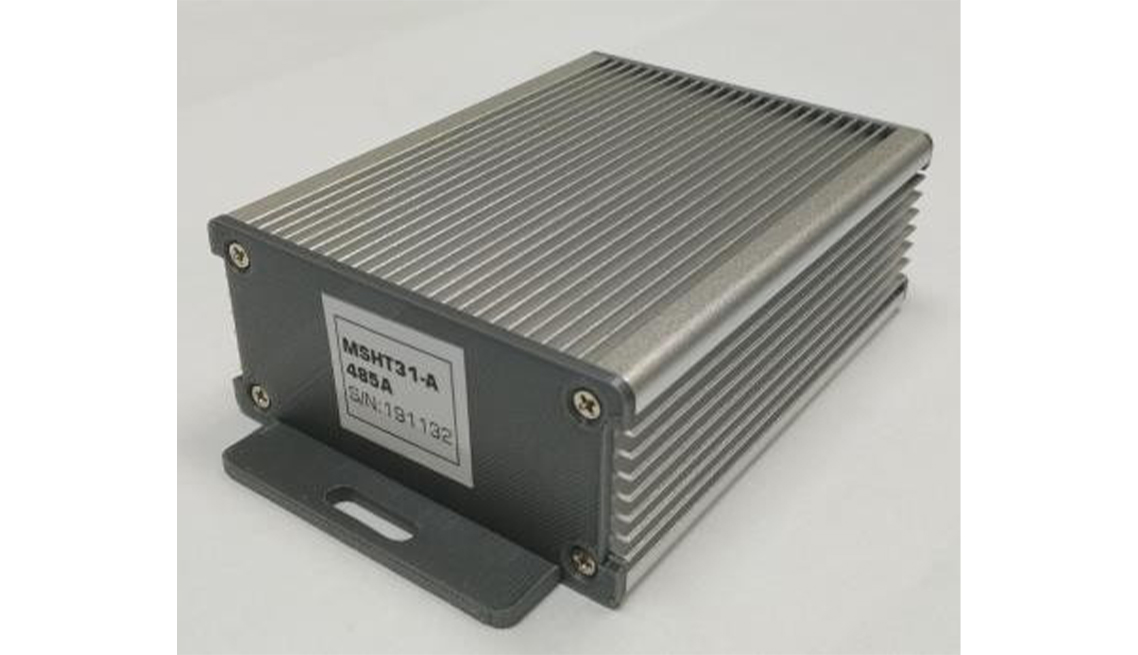

MSHT 31

Features
• RS485 or Industrial TCP network ready
• For use with all Positive Air Pressure MCG units
• Compatible with MCG 10/20/30/40
• Interchangeable without recalibration
• Multi-sensing operation
• Long cable length – up to 300m
• Simple installation – no calibration require
• Easy to read status LED indicator available for alarm monitoring at sensor point
• Metal housing for good ambient temperature sensing
• Sensor probe option available
• Designed and manufactured with the best available industrial quality components for extreme reliability.
Specifications
• Resolution : 0.05% for RH, 0.04C for temperature
• Accuracy : +/- 2% for RH, +/- 0.3C for temperature
• Repeatability : +/- 0.1% for RH, +/- 0.1C for temperature
• Hysteresis : +/- 1% RH
• Operating Range : 0-95% RH (non-condensing) -4 to 120C
• Power Supply : 5-12VDC at 0.2A
• Size (subject to change) : 4.25”/110mm(w) x 3.25”/83mm(d) x 1.75”/45mm (h)
• Weight : less than 0.5 kg
Installation Requirement
• Sample air tubing for MCG 10/20/30/40 Only (Optional)
• 22-24 AWG 2 twisted pairs shielded data cable
• Space allowance for cable and tubing
Options
• Air circulation device for air distribution inside display case

Note: Installation detail should refer to the Installation Guide for MCG units
