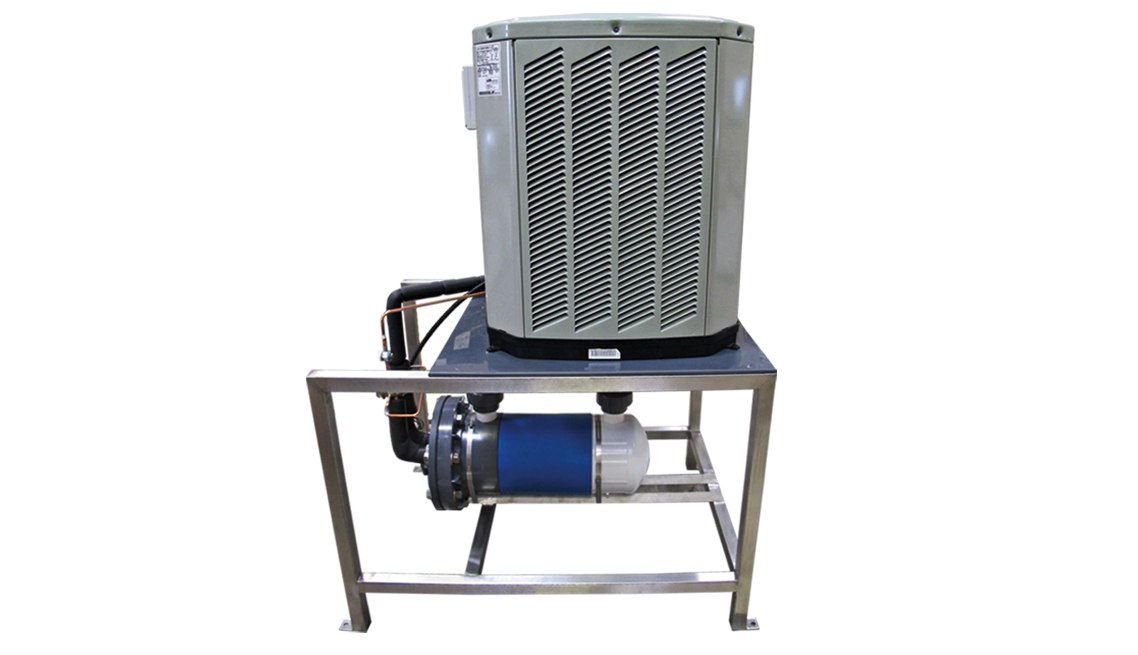

MT10 Q9

Features
• Reliable close loop temperature control for single display or storage cases.
• Automatic switching for Cooling or Heating
• Non-Condensing works with MCG4/8 constant humidity units.
• Or integrate with Dry-Only device for Low RH application
• Use most energy efficiency controls
• Simple installation – thermal plate can be part of the display case and power and control unit may be placed below or adjacent to display cases.
• User-friendly interface for easy set point entry.
• Easy to read electronic readouts
• Designed and manufactured with the best available industrial quality components for extreme reliability.
Specifications
• Capacity : 1200 BTU
• Operating Temperature : 17C to 27C (63F to 81F)
• Power : 110/220 VAC 47-63Hz 15/10A
• Power Consumption : 300 watts at 50%RH / 21C
• Size (subject to change) : 670mm(W) x 450mm (D) x 370mm(H)
• Weight : 25 Kg
• Water Drainage: : loop connection to MCG unit (Optional)
Installation Requirement
• Minimum space – 700mm (W) x 700mm (D) x 500mm (H)
• Ventilation fan with minimum 200 cfm is recommend
• Display case must be thermal insulated for better result
• Thermal Plate and/or diffuser installed inside case and well insulated
• one 30mm hole for sensor if use as standalone without MCG unit
• Compartment should have access door for maintenance
• Power outlet 110VAC/15A or 220VAC/10A
Options
• Dry-Only device

Please Call or E-mail for pricing.
